Mission creation

RECOMMENDATIONS

  • Assess the crop growth stage beforehand to set optimal spraying parameters.

  • Following app updates, some features may not appear exactly as shown in this document. Please refer to the online Help Center for the latest documentation.

  • Some features are available only with a valid license.

A treatment consists of one or more fields treated with the same plant protection products and the same parameters of use (speed of work, height of the booms...).

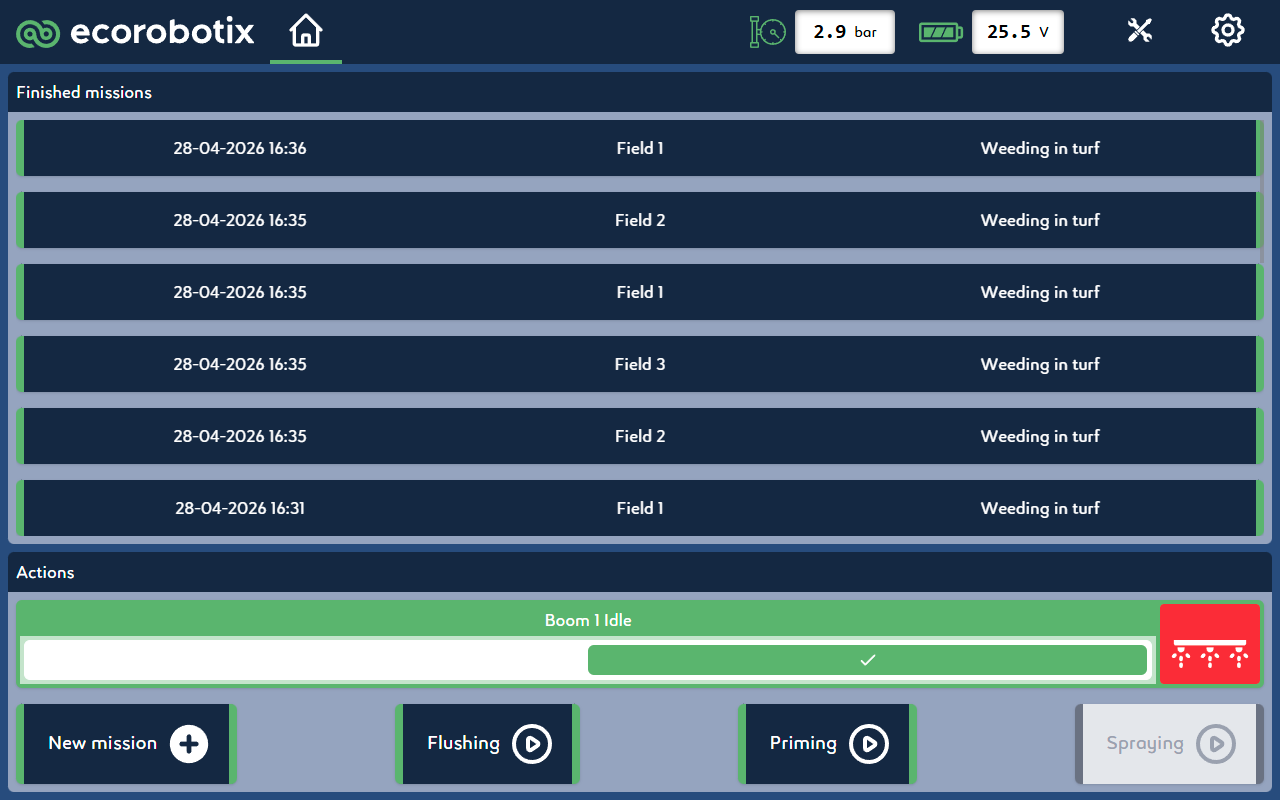

  1. In the app, click New Mission to configure a treatment mission.

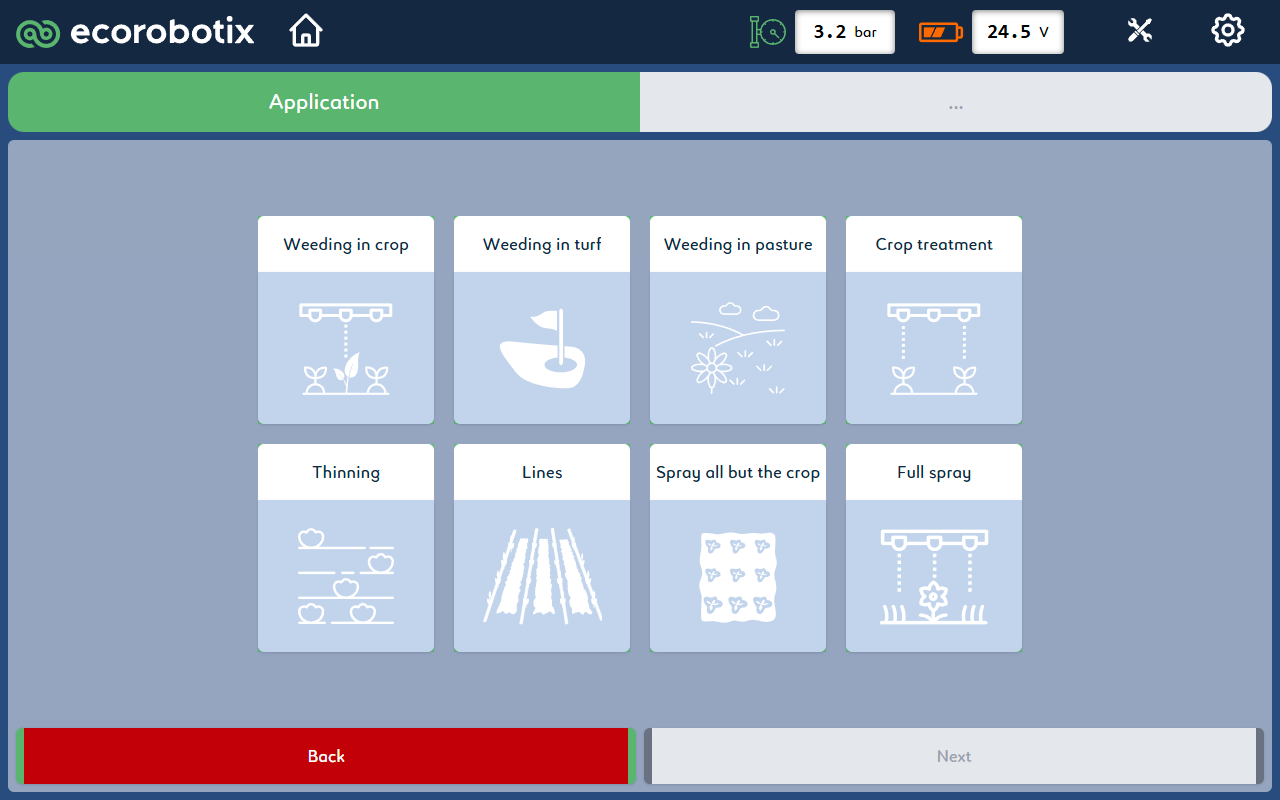

  1. Select the application type.

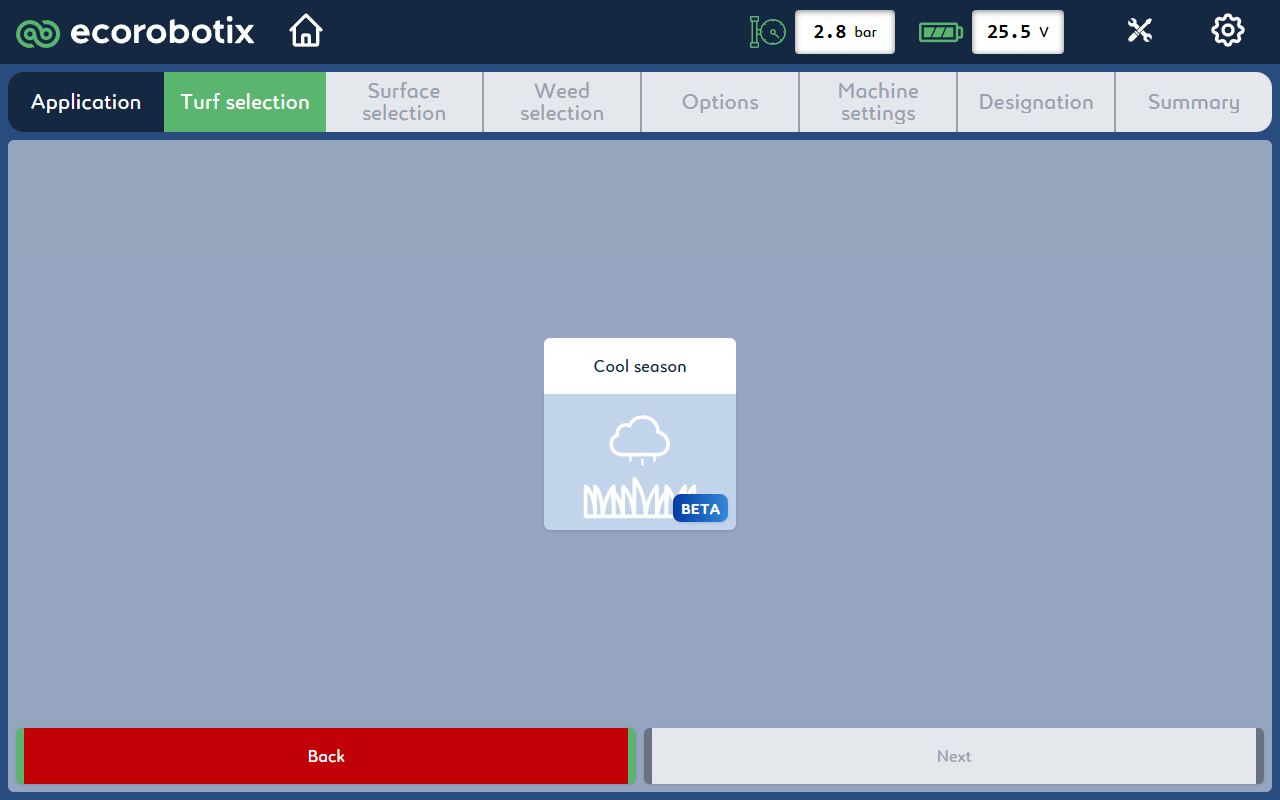

  1. Select the turf type.

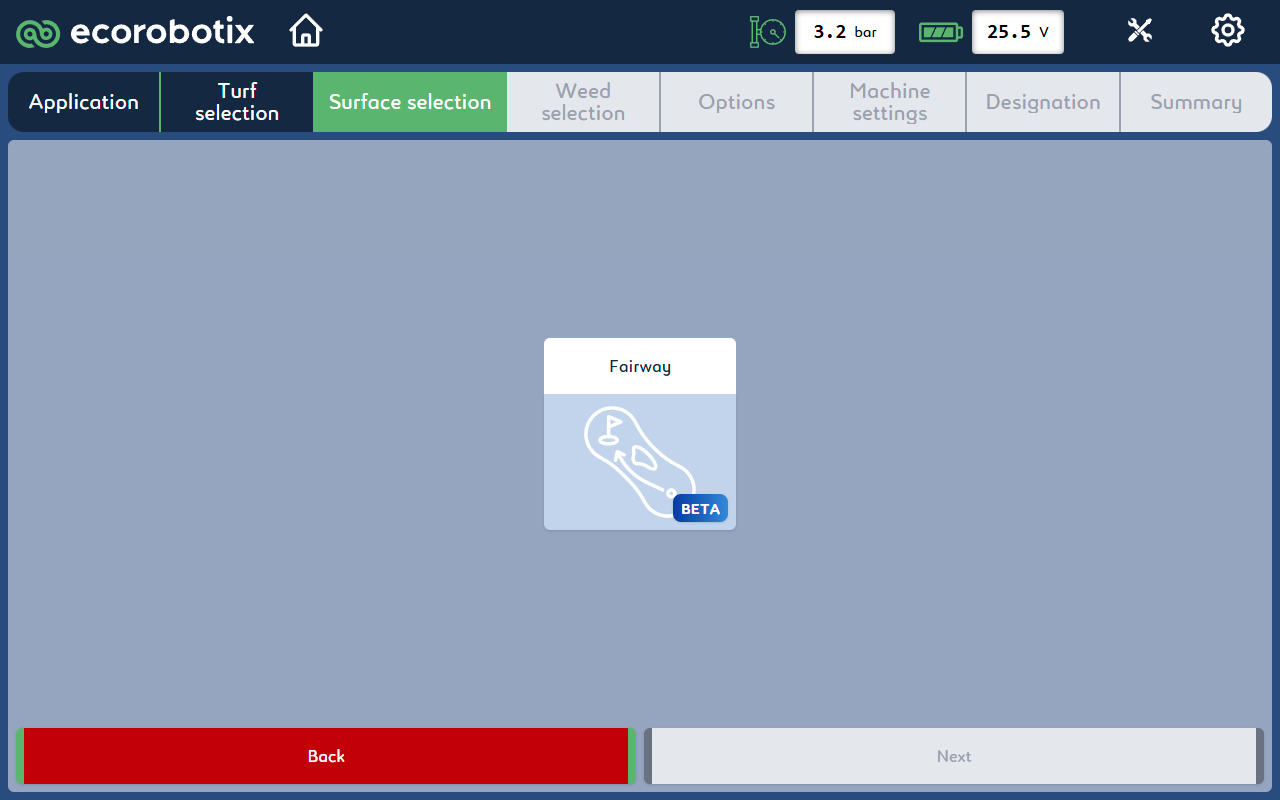

  1. Select the surface.

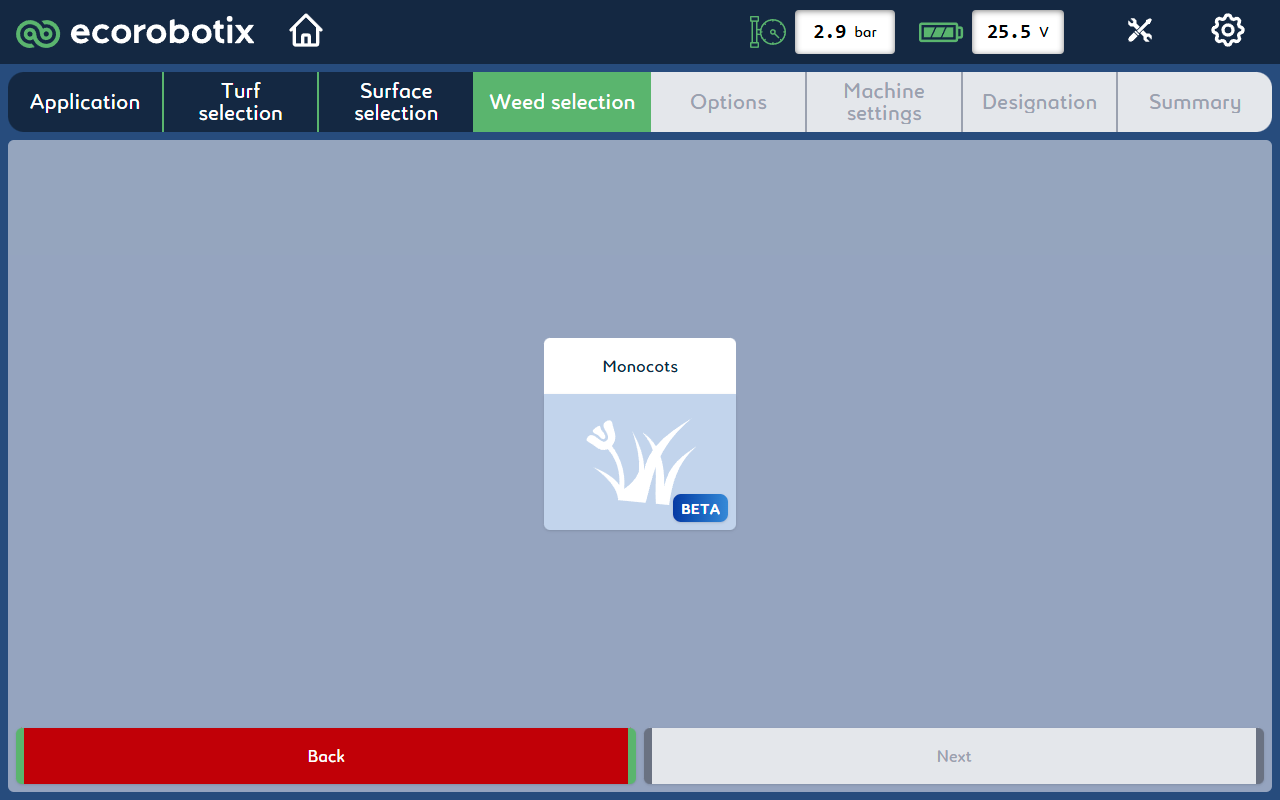

  1. Select the target weed type.

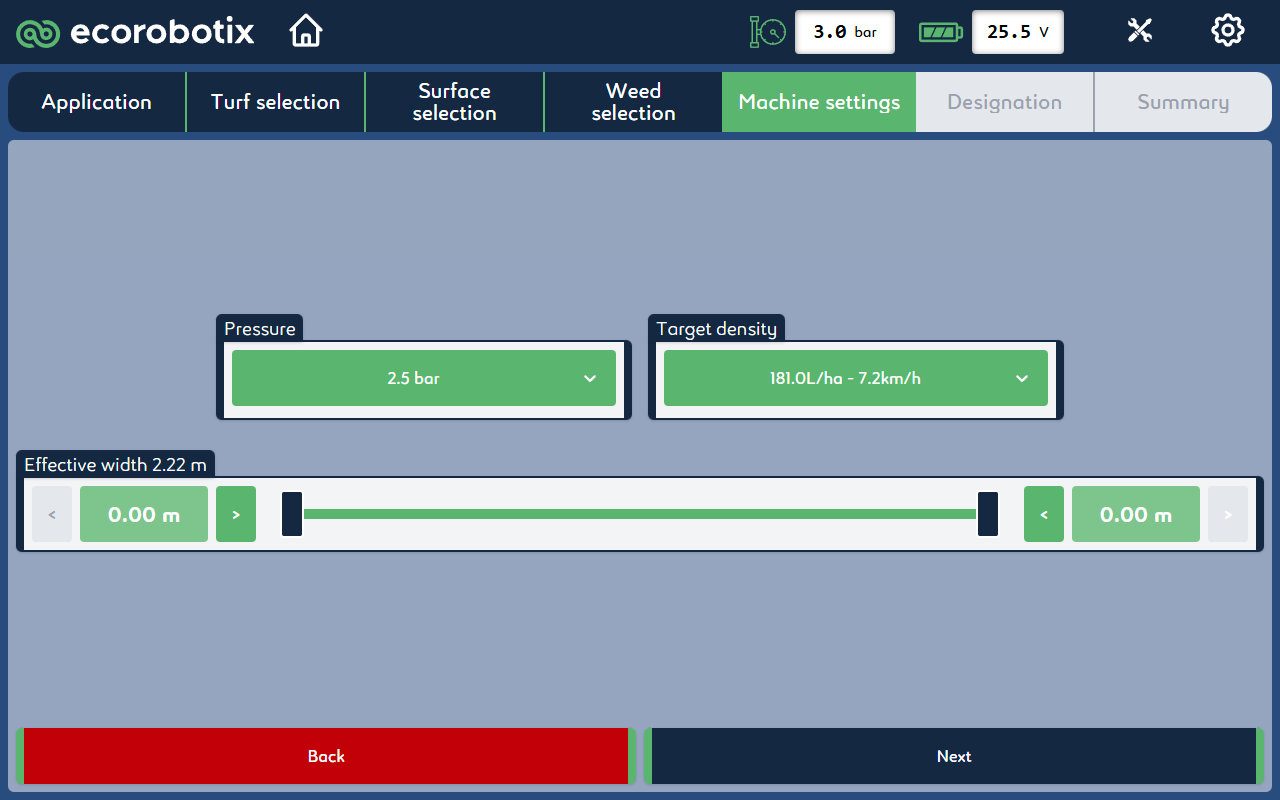

  1. The working pressure can be set from 2.2 bar to 3.5 bar.

INFORMATION

It is recommended to leave the default setting at 3.0 bar.

  1. The target density is linked to the selected working pressure and can be set at a defined speed.

  2. The working width can be changed from 2.25 m | 7.46 ft to 0 in increments of 0.04 m | 0.15 ft.

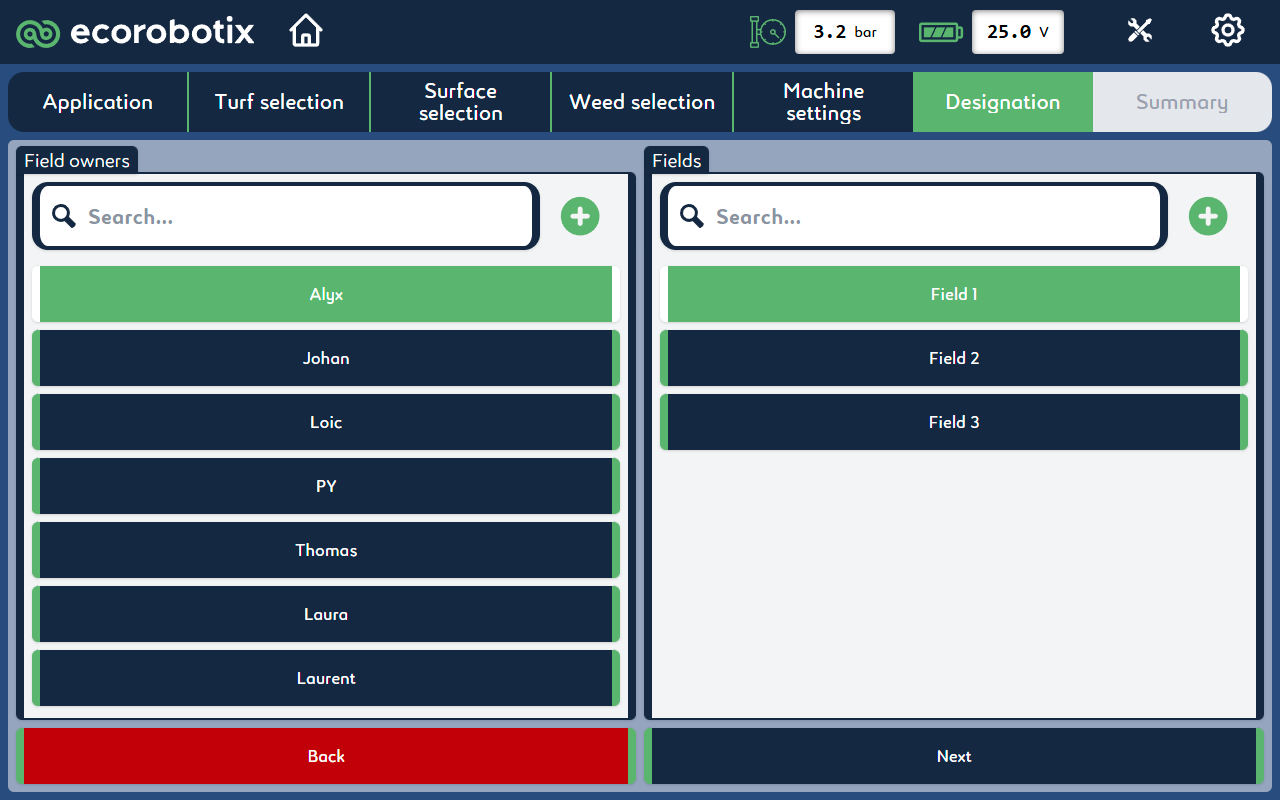

  1. Define the owner and field.
    If necessary, create a new entry by tapping the + button.

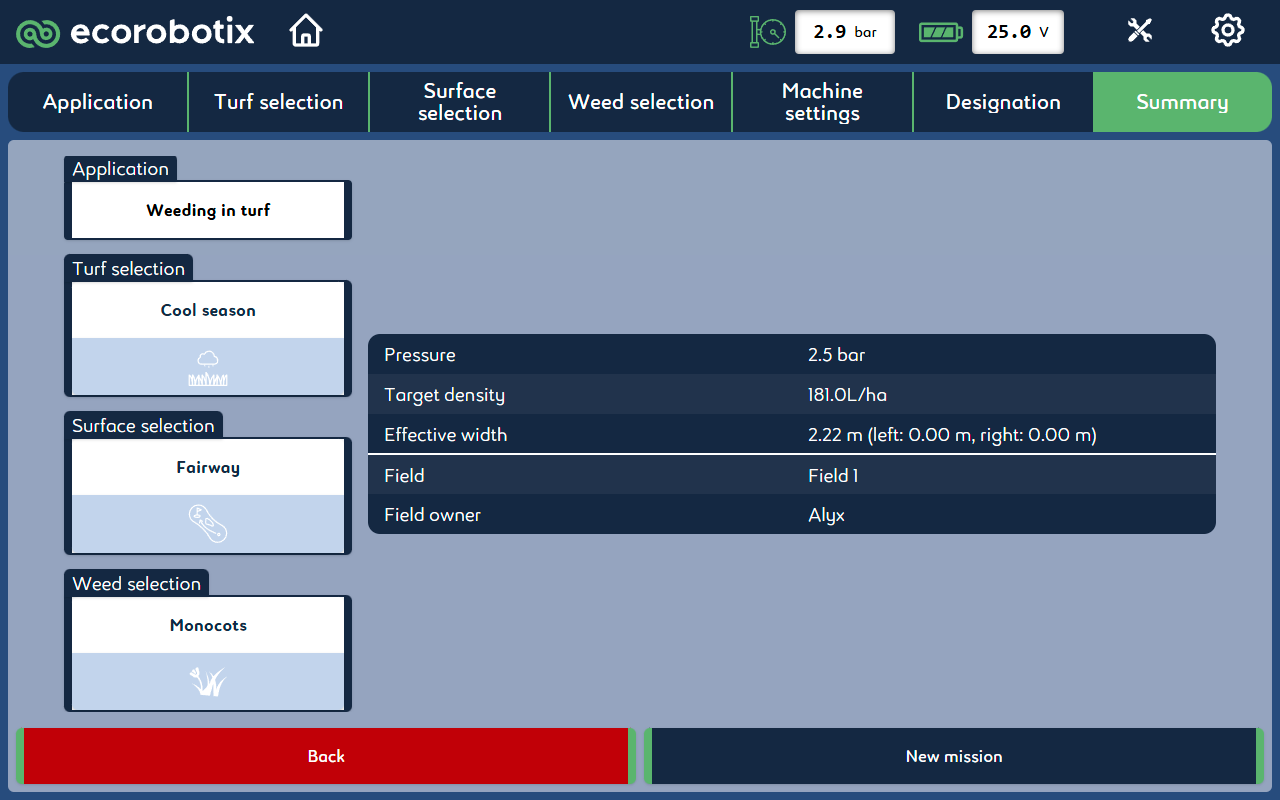

  1. Verify all configured parameters in the mission summary.



CAUTION

Incorrect mission configuration can result in sub-optimal treatment performance and may negatively impact turf quality.

  1. Click on New mission to launch the configured mission.
