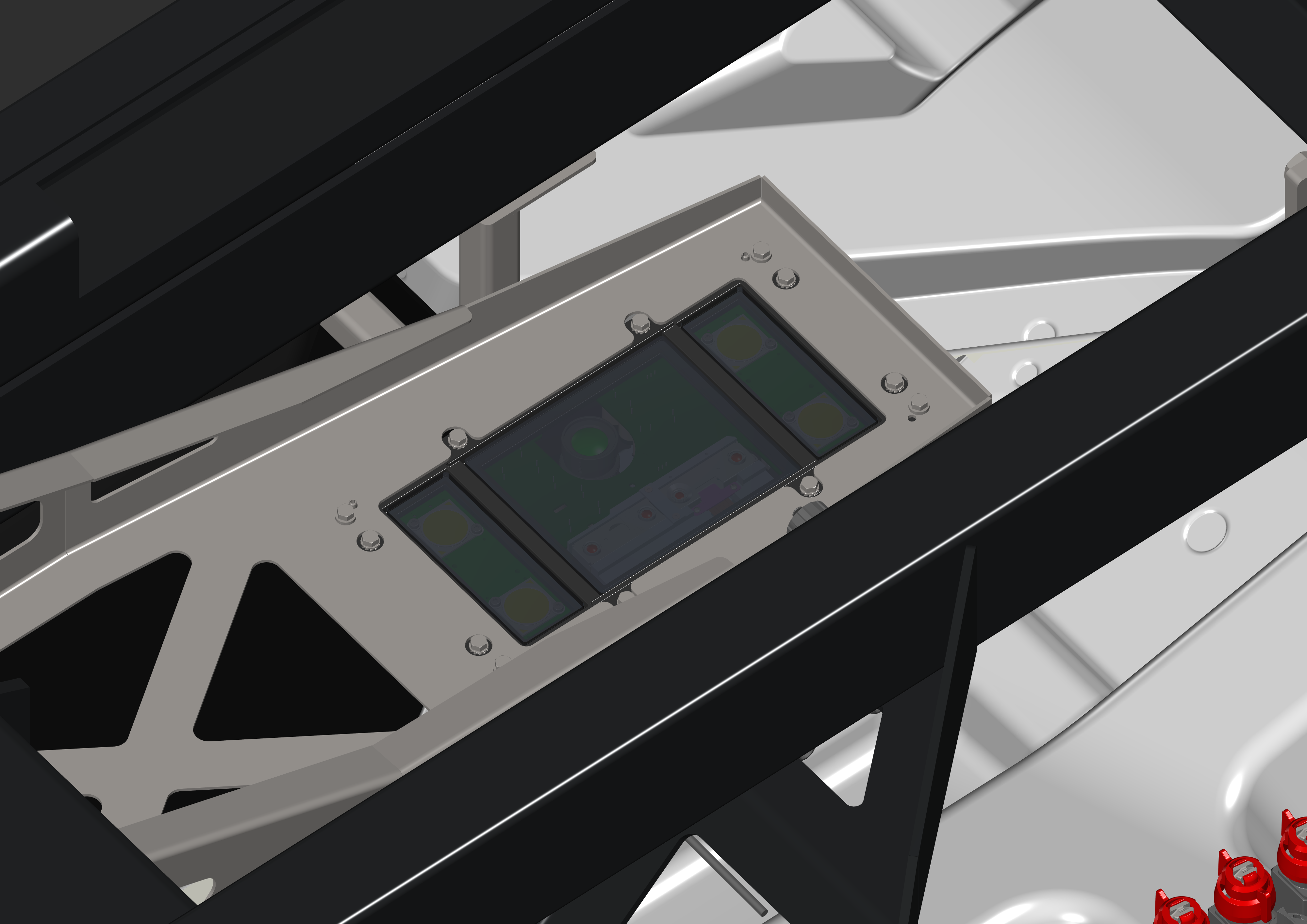

Ensure that the lenses of the vision boxes are clean and in good condition. If needed, use a clean cloth and glass cleaning fluid to clean them.
INFORMATION
Do not use a pressure washer to clean the optics.
-
Lower the rear three-point hitch until the wheels touch the ground.
-
Set up the rear three-point hitch in the working position, meaning using the oblong mounting hole for the top link hitch.
INFORMATION
The top link hitch should be in the middle of the oblong hole when the machine is flat, to allow the machine to follow the slope of the ground.
-

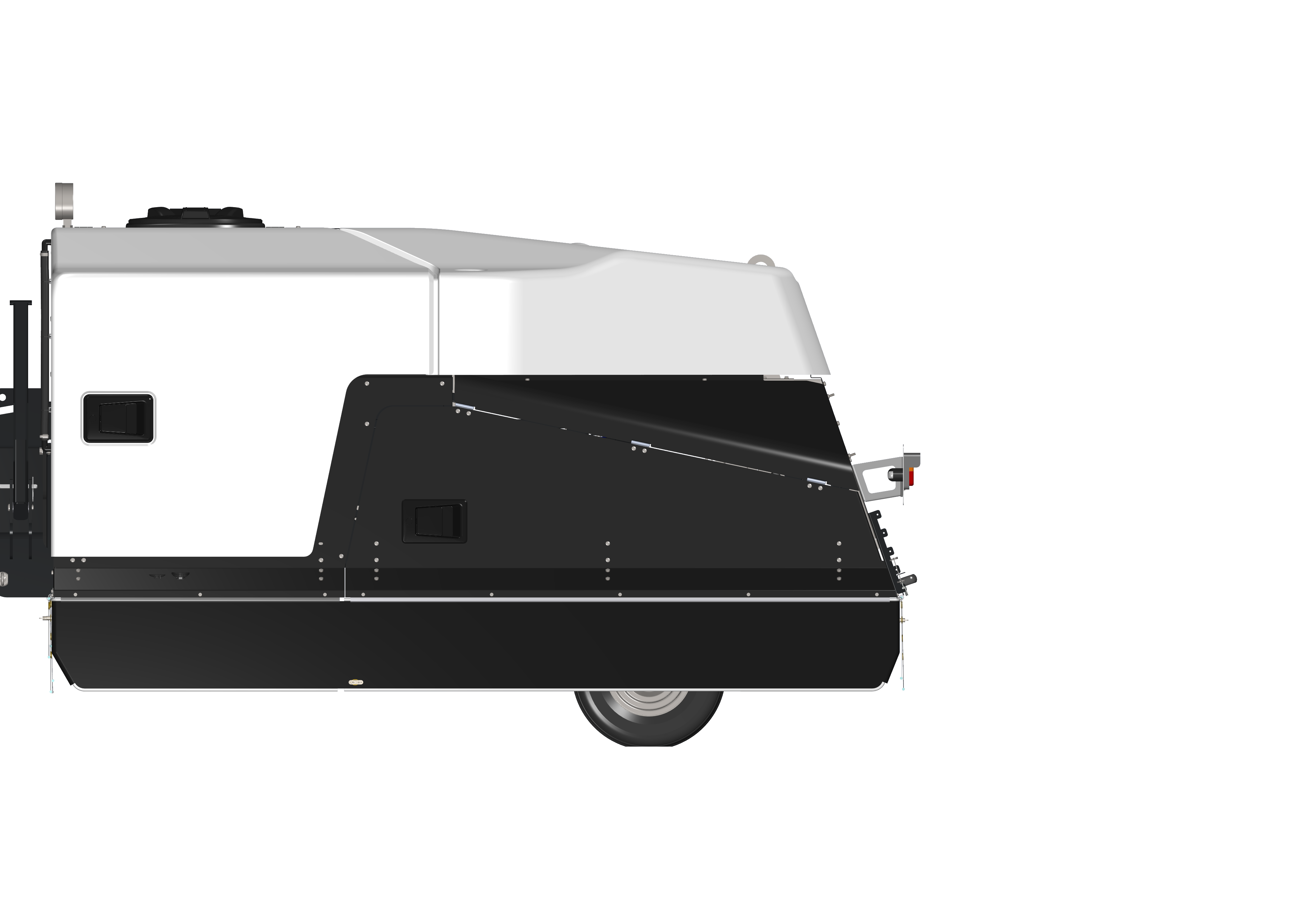

Adjust the parallelism of the sprayer with respect to the ground:
-

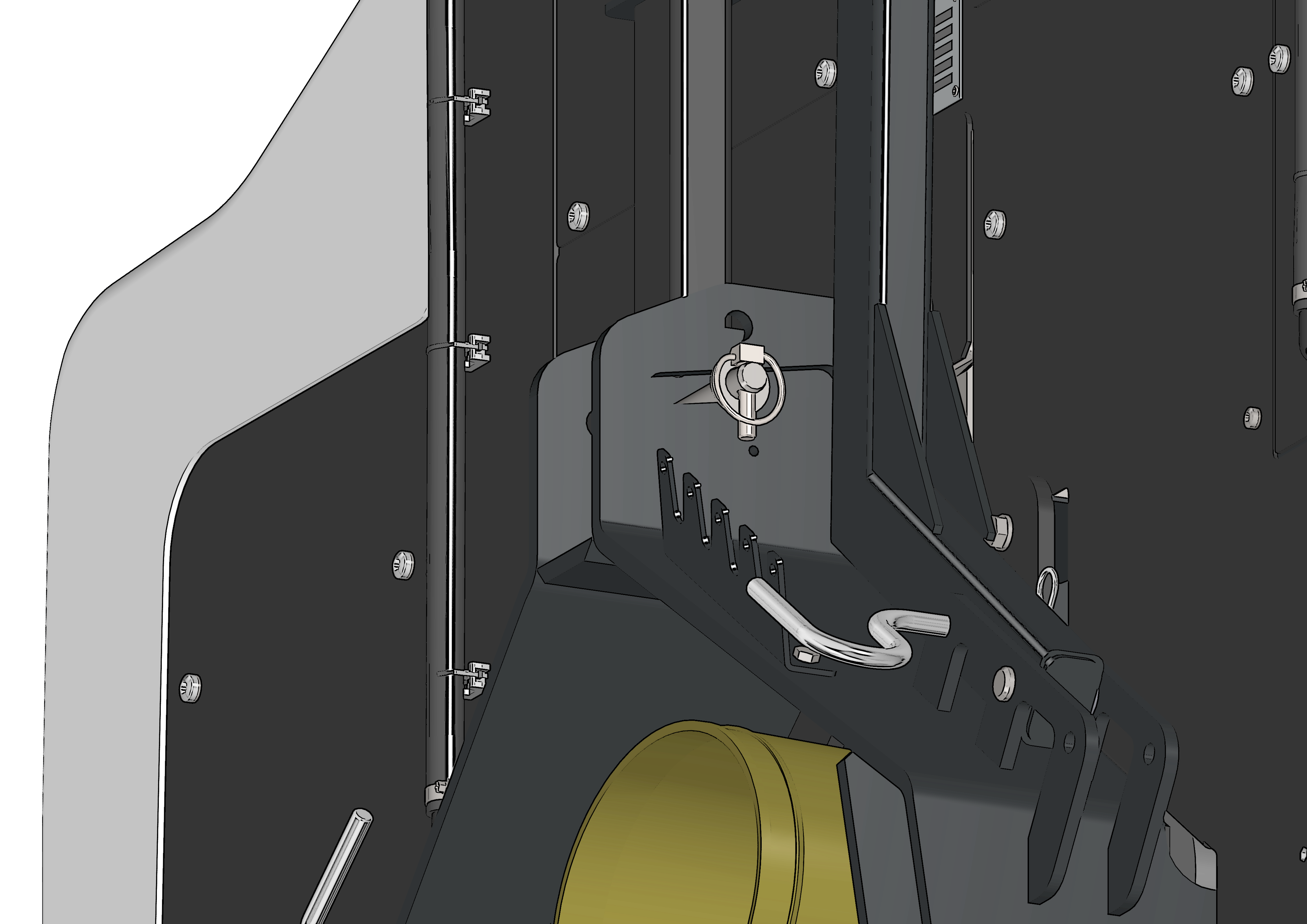

Adjust the height of the three-point hitch so that the pin on the upper center arm is in the middle of the slotted hole.
-

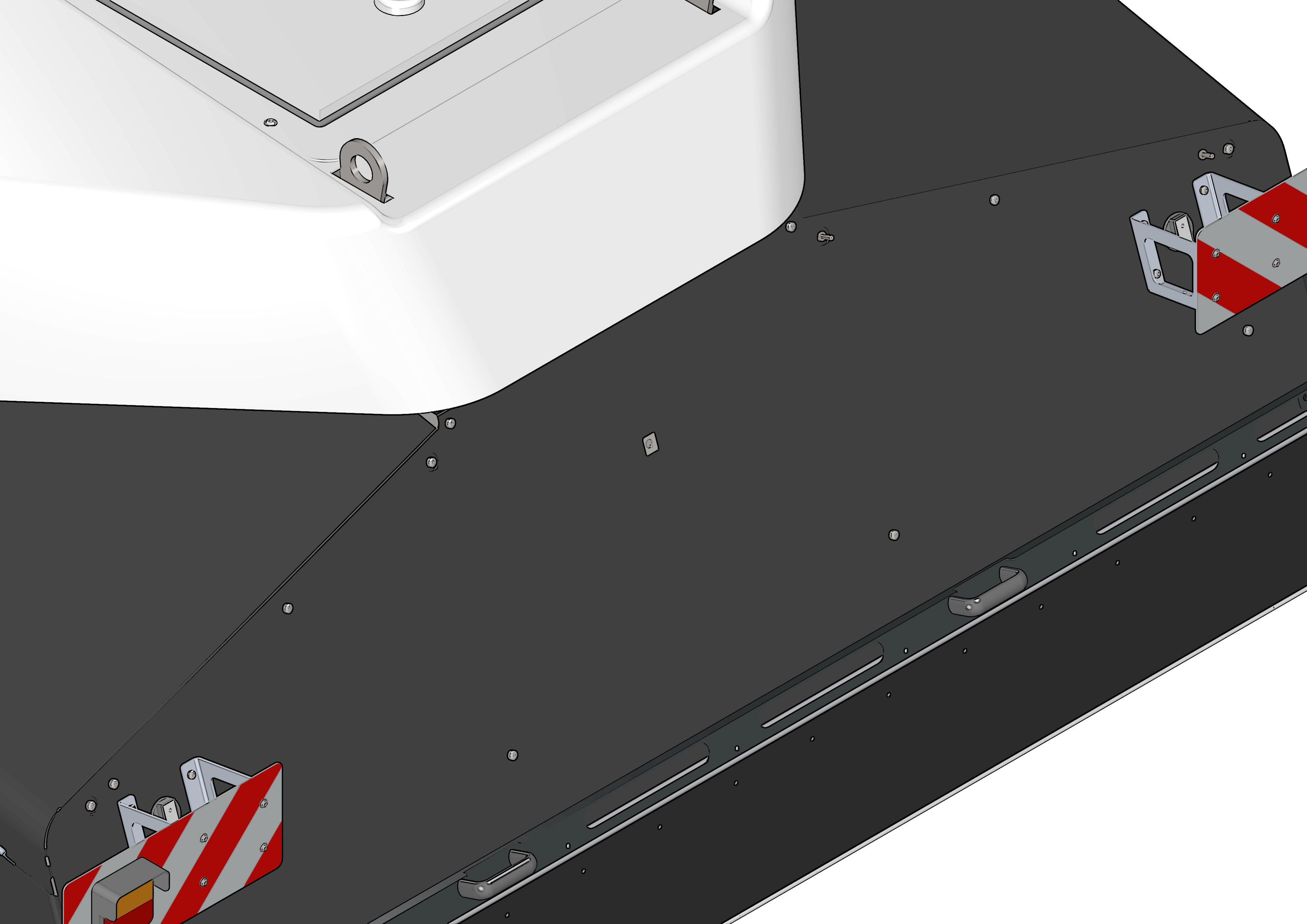

Adjust the tractor lift stop so that the covers are parallel to the ground.
-
Visually check for parallelism.
-
-
Adjust the height of the spray booms so that the lower part of the nozzles is 15 cm | 5.9 in vertically away from the surfaces to be treated.
INFORMATION
The lifting system of the spray boom is actuated:
-
By the button at the back.
-
On the app with the AutoBar function, which automatically and continuously adjusts the boom to within 15 cm | 5.9 in of the target to be treated.
CAUTION
The AutoBar function cannot be used to avoid obstacles (stones, branches, etc.).
-

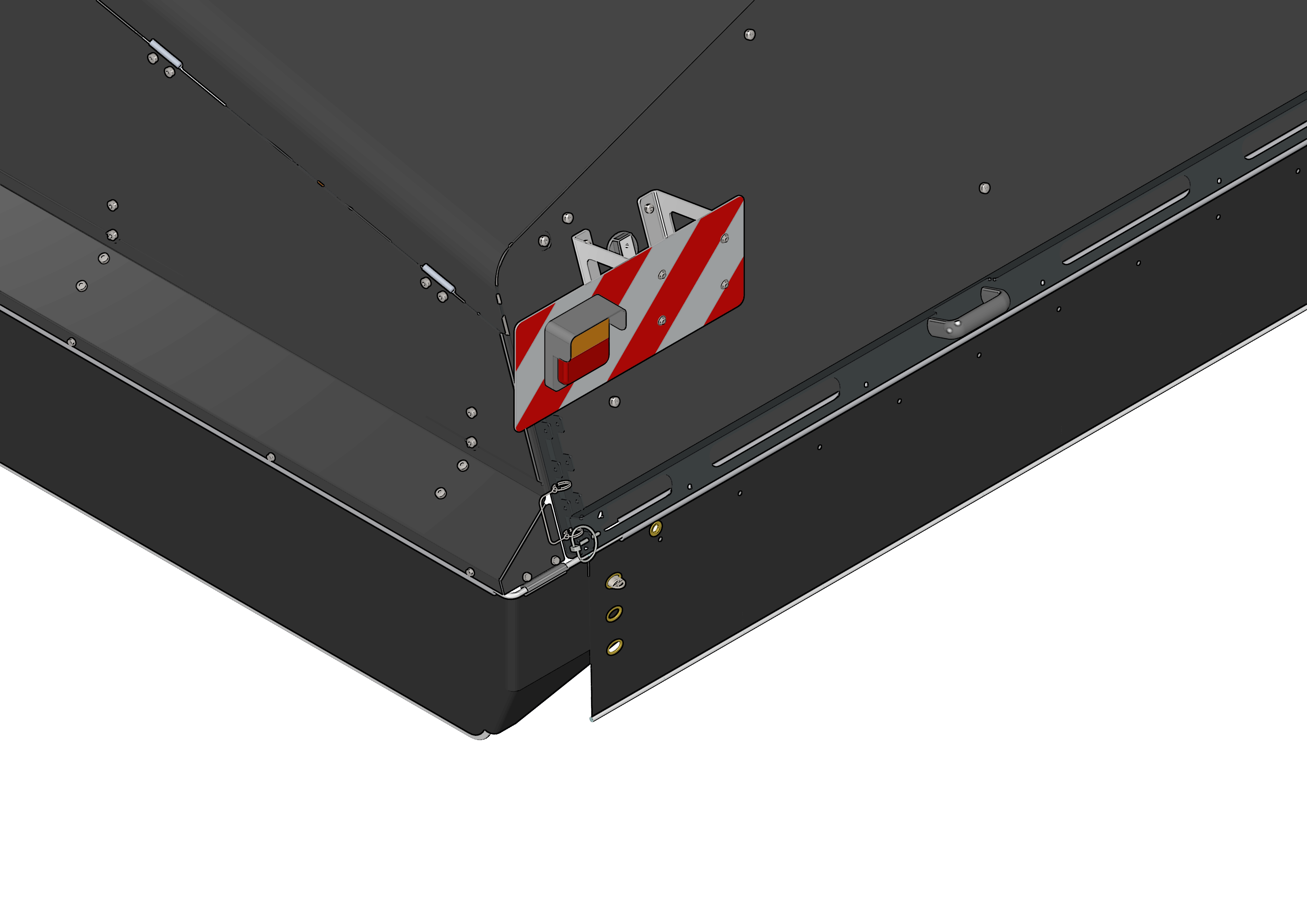

Lower the rear protective cover low enough to block the maximum amount of light, but high enough to prevent damage from the cover rubbing on the ground.
