Adjusting the working pressure

  1. Make sure the pump is switched off.


  1. Set the valves in Spraying position mode.

INFORMATION

Do not use this 3D illustration as reference. Refer to the blue position modes table.


  1. Start the pump.

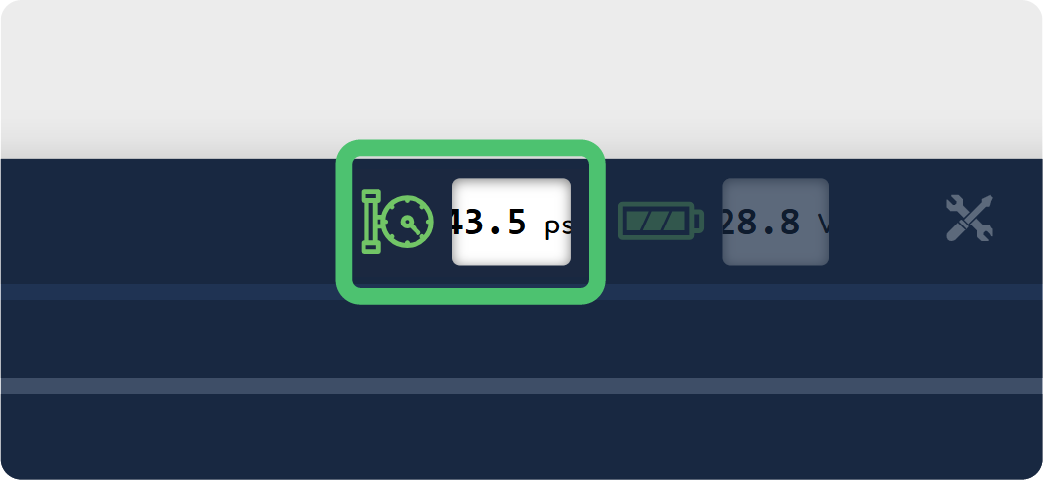

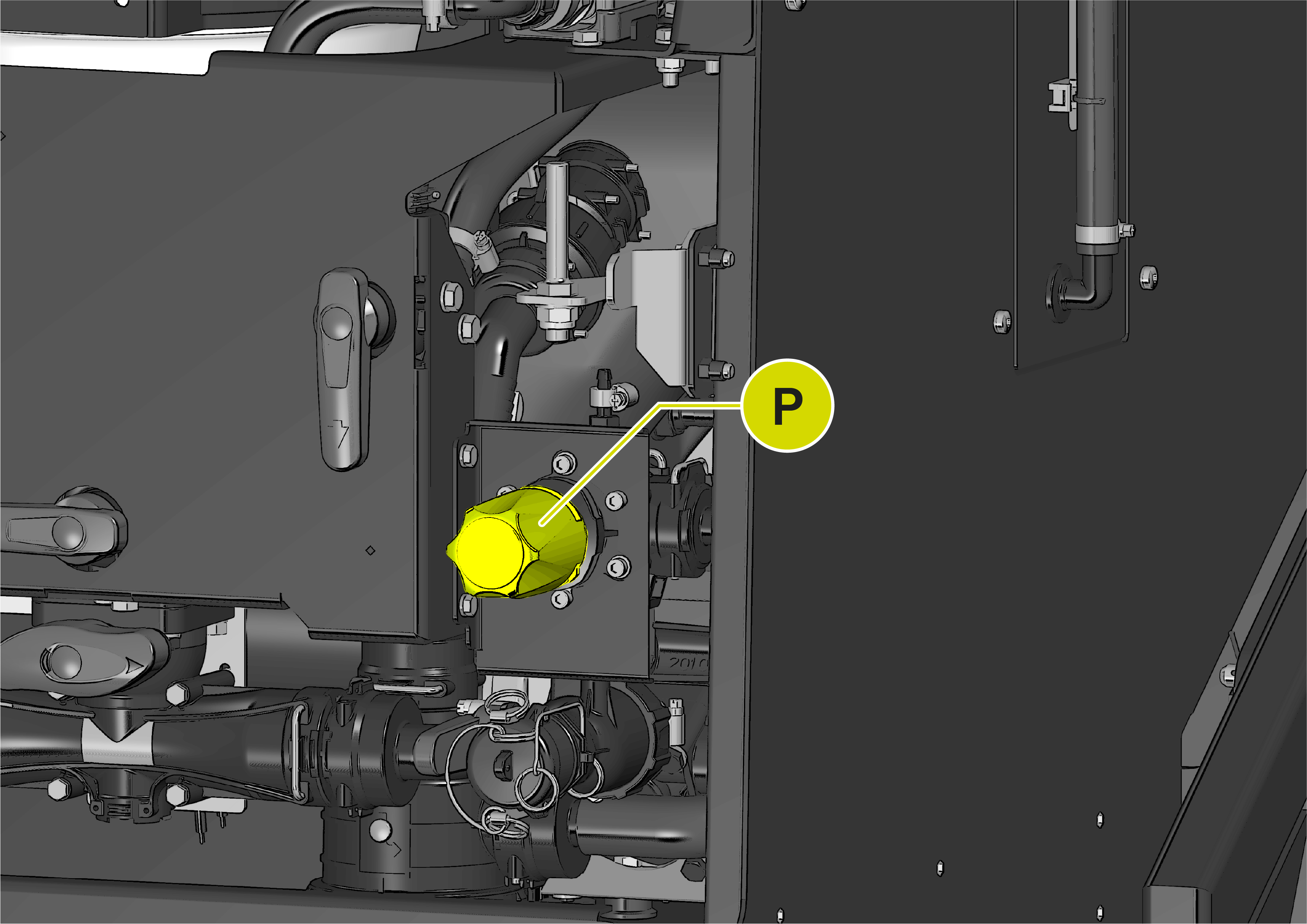

  1. Adjust the pressure displayed on the application to 3.0 bar | 43.5 psi by manipulating the pressure valve P.



Images_UI Pressure US.png



INFORMATION

  • The Flushing and Priming modes must not be activated.
