Bleeding air from the circuit
When air is present in the system, the pump must be primed. The main causes of air in the system are as follows:
-
The pump has been switched off for a long time.
-
The suction filter has been opened.
-
The selected tank is empty and the pump is switched on.
-

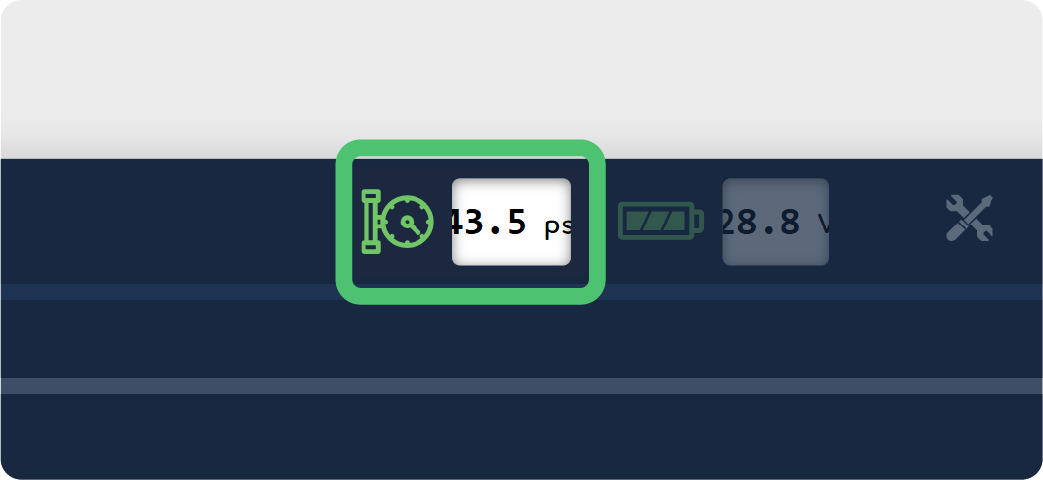

The symptom of air in the circuit is as follows:
-
The pressure varies rapidly and with amplitudes greater than ± 0.5 bar | 7.25 psi.
To prime the pump:
-
Make sure the pump is switched off.
-

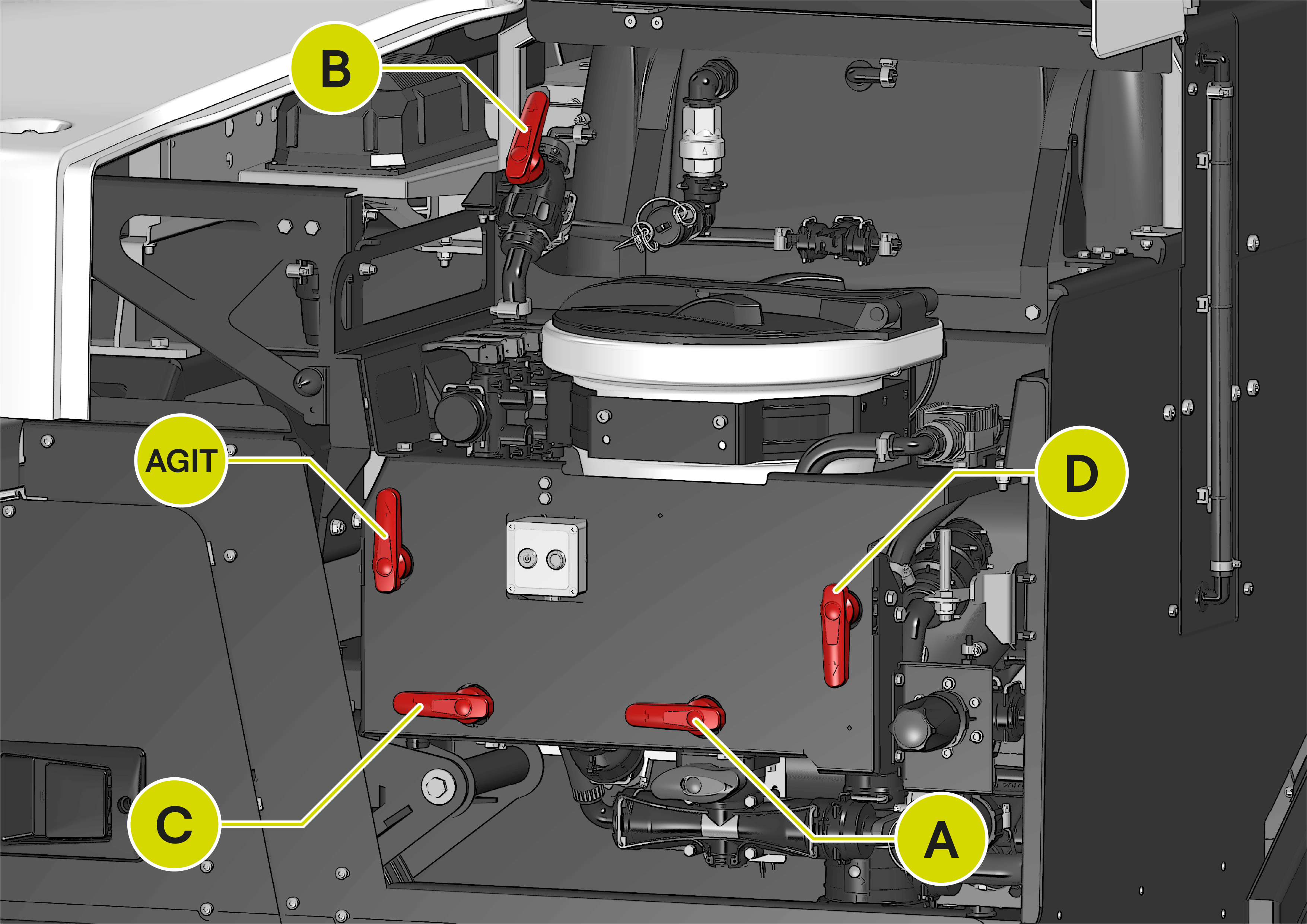

Position the valves in Spraying position mode and set the AGITATION valve to HIGH + LOW.
-
Start the pump and wait for the pressure to stabilize.
-
If the pressure does not stabilise, check that there are no leaks and ensure that the liquid level in the selected tank is sufficient.
INFORMATION
Valve C selects the tank: position 5 for the spray mixture tank and position 6 for the water tank.
-
To adjust the working pressure, refer to the following chapter (Adjusting the working pressure).

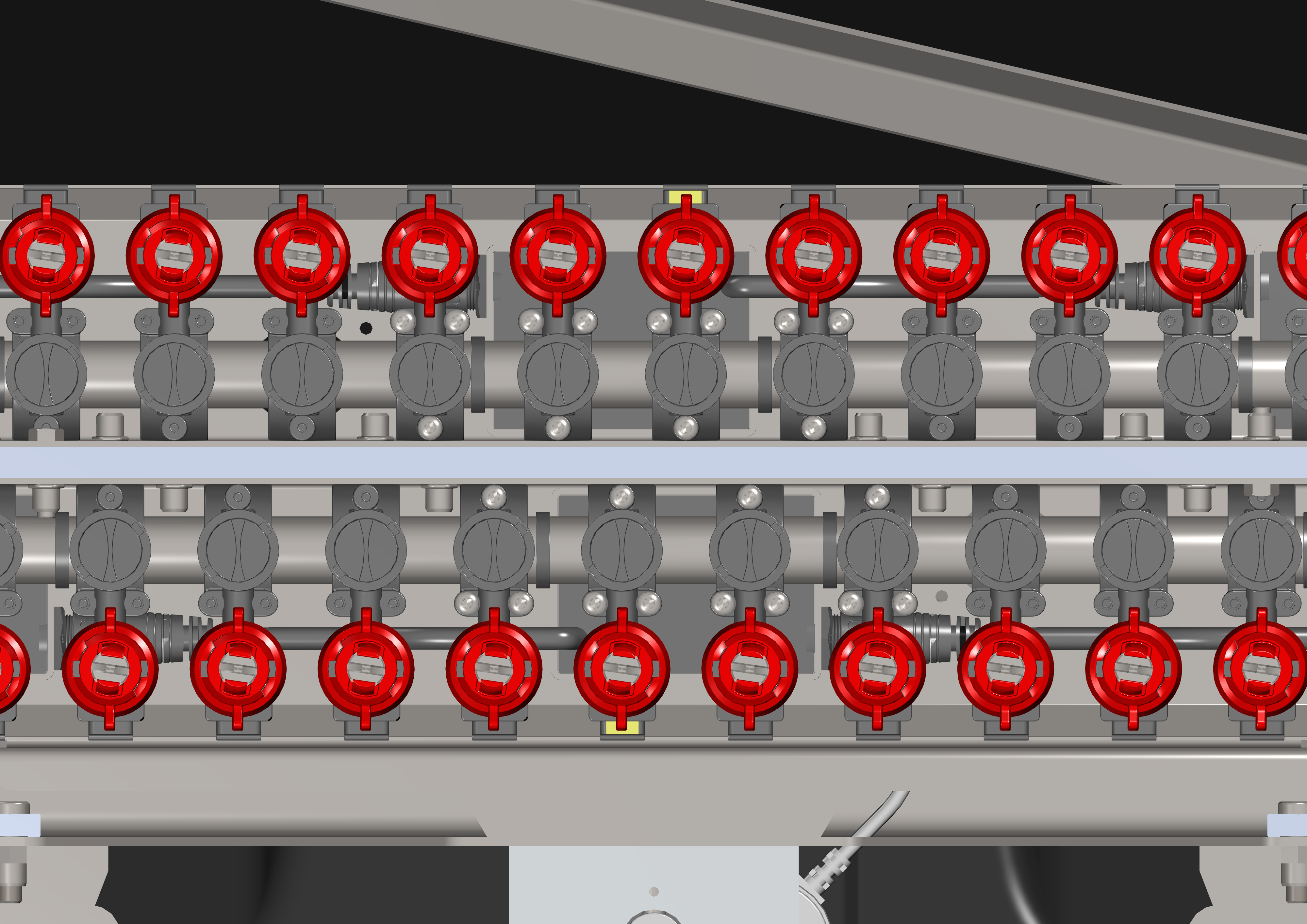

Checking nozzle orientation
The nozzle angle should be 8°.
